Case Study
02

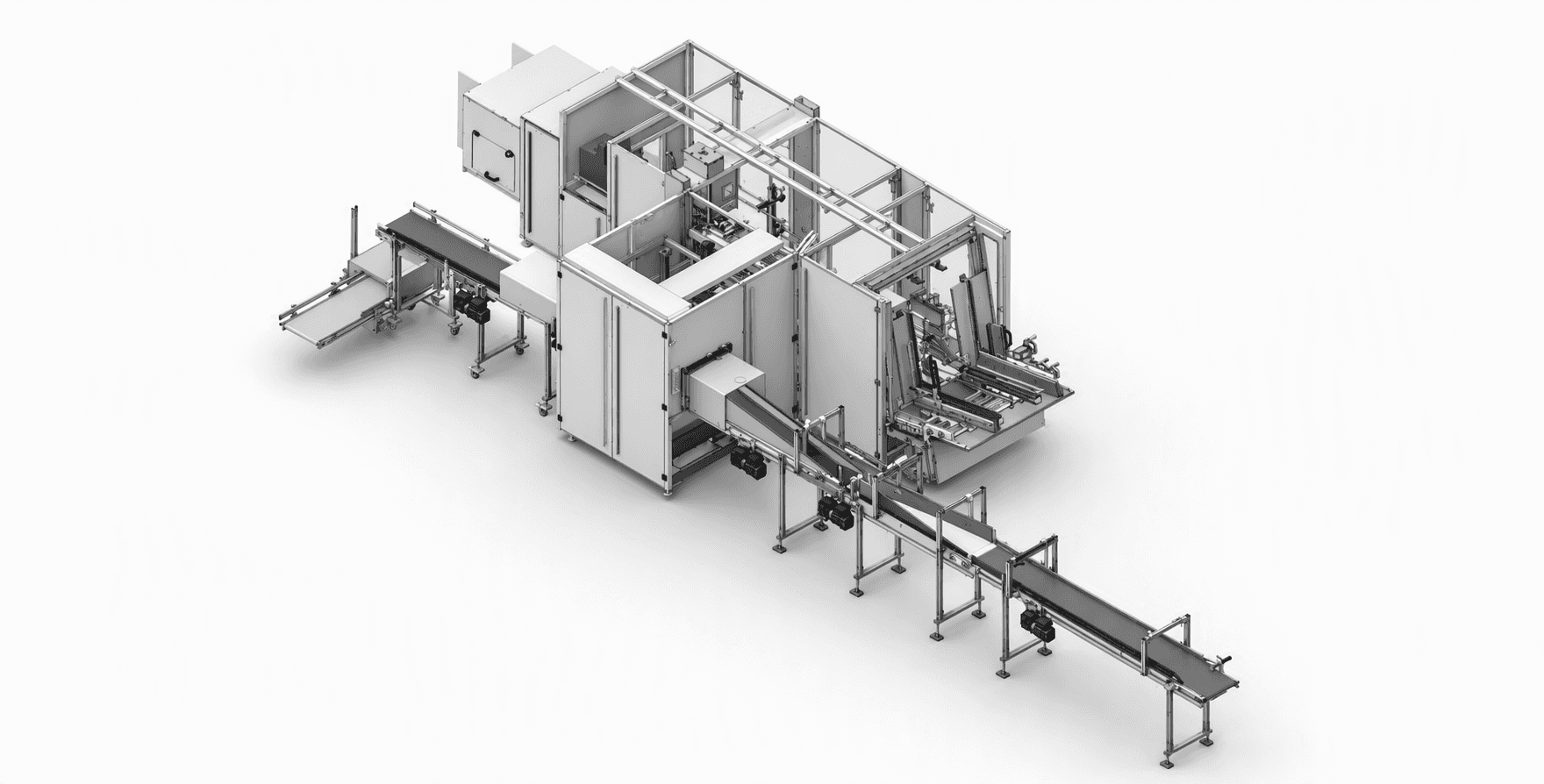

The transfer of the product (folding box filled with ice) takes place laying flat crosswise.
In the infeed, it is positioned from laying down to upright.
Using a servomotor-driven pusher, the products are grouped according to the format
recipe selected.
Depending on the format, the grouped products can be rotated by 90°.
All products are placed in front of the main pusher by a servomotor-driven lowering movement.
The carton blank is removed from the magazine and positioned in the cycle chain.
The cycle chain transports the unfolded carton into the loading station.
The main pusher pushes the grouped products into the carton positioned in the loading station.
The pasting and insertion of the flaps is carried out in the run.
Servomotor-driven movements of carton removal, cycle chain,
transversal pusher, lowering station and main pusher
All speeds of the conveyor belts can be adjusted infinitely
Forming and filling on one level
Positioning and loading in separate stations
All format-dependent parameters can be stored in recipes
Low energy consumption
Minimum protection class IP54
Automatic hot melt refilling system
Allen Bradley control
Bypass system
Processible with Fefco 0200 and Fefco 0201
03
| Folding box dimensions (PU) | Formation | Carton dimensions (VD) | Output | fefco |
|---|---|---|---|---|
| L × W × H | 205 × 132 × 75 mm | 2 × 3 × 1 | L × H × W | 277 × 238 × 218 mm | 40 VE/min | 0201 |
| L × W × H | 265 × 167 × 61 mm | 2 × 5 × 1 | L × H × W | 387 × 327 × 281 mm | 24 VE/min | 0200 |
| L × W × H | 205 × 132 × 75 mm | 4 × 4 × 1 | L × H × W | 550 × 311 × 216 mm | 48 VE/min | 0200 |
| L × W × H | 205 × 132 × 75 mm | 4 × 5 × 1 | L × H × W | 552 × 361 × 216 mm | 48 VE/min | 0200 |
| L × W × H | 205 × 132 × 75 mm | 4 × 2 × 1 | L × H × W | 545 × 160 × 216 mm | 48 VE/min | 0200 |
| L × W × H | 222 × 148 × 118 mm | 2 × 2 × 1 | L × H × W | 312 × 252 × 234 mm | 40 VE/min | 0201 |
| L × W × H | 149 × 149 × 91 mm | 3 × 2 × 1 | L × H × W | 470 × 197 × 161 mm | 80 VE/min | 0201 |
Performance:
Up to 25 cartons per minute
