Case Study
02

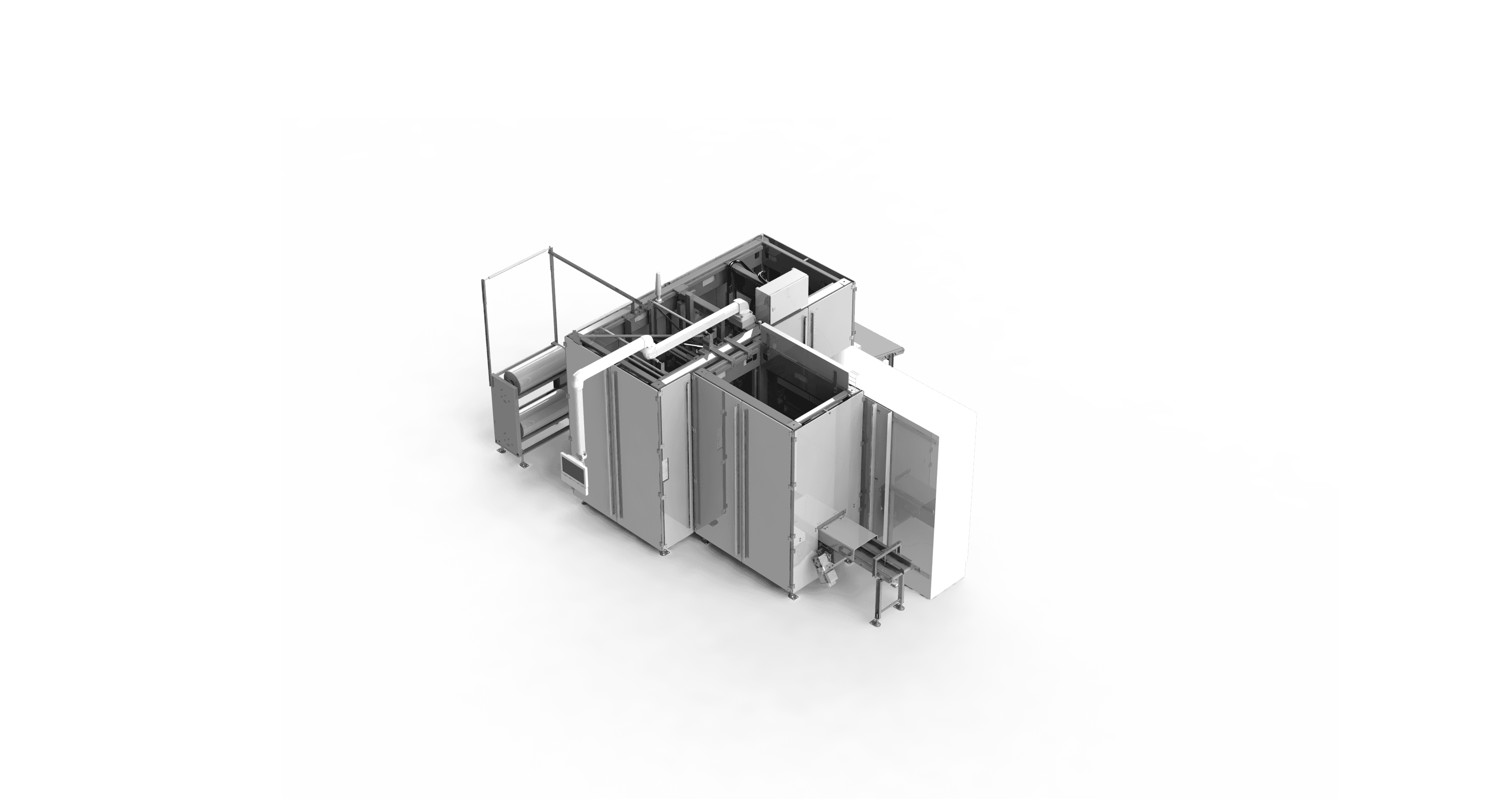

The folding boxes filled with frozen food are handed over in a lying position, broadside first, onto the infeed conveyor.
Depending on the desired pack pattern, the folding boxes are fed to the grouping
station either lying or standing.
Version a - standing formation
The products are fed to the erecting system via a belt conveyor (27).
The products are erected from lying to standing by a servo-driven star wheel (30).
Vertically arranged side belt straps support the erecting process.
These belts transport the erected products further to the forming station.
A servo-driven lift plate (31) lifts the products out of a backlog and positions them on
stacking latches in front of the main infeed (58).
The split lift plate ensures in dual-lane operation, together with a hold-down device,
that one product remains between the formations when lifted onto the stacking latches,
creating a gap between the formations.
Version b – horizontal formation
The products are fed to the side belt straps via a belt conveyor (27).
The servo-driven star wheel (30) is a format part that is not required for horizontal
formation.
Vertically arranged side belt straps feed the folding boxes to the forming station.
A servo-driven lift plate (31) lifts the products out of a backlog and positions them,
according to the desired stacking pattern, onto stacking latches in front of the main
infeed (58).
The servo-driven main infeed pushes the formed products into the film curtain,
which is created from the top and bottom film.
Servo-driven stretching units dispense the film according to the programmed settings.
The top and bottom film are sealed by sealing bars and then separated by a cutting knife.
The film-stretching technique creates a tightly packed bundle
If required, the lateral film overhangs are shrunk using hot-air blowers.
The bundle secured by the film band is transferred via a conveyor belt to the
downstream process.
• The machine can be operated in single-lane or dual-lane mode.
• All horizontal and vertical movements are servo-driven.
• The star wheel, lift plate and main infeed are servo-driven.
• Conveyor belt speeds are infinitely adjustable.
• Tight packaging thanks to servo-controlled film dispensing.
• All format-dependent parameters are stored in the recipe.
· Control system: Siemens or Allen Bradley
· Integration of a printer/labeler in the infeed/outfeed
· Stainless steel design
· Automatic film sealing device
· Function without film
· Motorized format adjustment
· Tear-off perforation; transverse
· Automatic format detection
· Follow-up slide for controlled container
• Longer production runs with one film roll
• More bundles per pallet
• Shorter machine design
• Compact, space-saving and more stable bundles
· Up to 75 % film savings
· Lower power consumption
02
| Product | Product dimensions (LxWxH) in mm | Formation | Container dimensions (LxWxH) in mm | Power (max.) |
|---|---|---|---|---|
| A | ca. 140 x 101 x 50 mm | 1 x 10 x 1 | ca. 140 x 500 x 101 mm | 200 boxes/min. |
| A* | ca. 140 x 101 x 50 mm | 1 x 6 x 1* | ca. 140 x 300 x 101 mm | 200 boxes/min. |
| C | ca. 195 x 101 x 50 mm | 1 x 10 x 1 | ca. 195 x 500 x 101 mm | 200 boxes/min. |
| C* | ca. 195 x 101 x 50 mm | 1 x 6 x 1* | ca. 195 x 300 x 101 mm | 200 boxes/min. |
| C new | ca. 185 x 101 x 50 mm | 1 x 10 x 1 | ca. 185 x 500 x 101 mm | 200 boxes/min. |
| D | ca. 195 x 110 x 60 mm | 1 x 9 x 1 | ca. 195 x 540 x 110 mm | 100 boxes/min. |
| D | ca. 195 x 110 x 60 mm | 1 x 5 x 1 | ca. 195 x 300 x 110 mm | 100 boxes/min. |
| E | ca. 190 x 139 x 60 mm | 1 x 9 x 1 | ca. 190 x 540 x 139 mm | 100 boxes/min. |
* In dual-lane production – lateral film overhang max. 25 mm

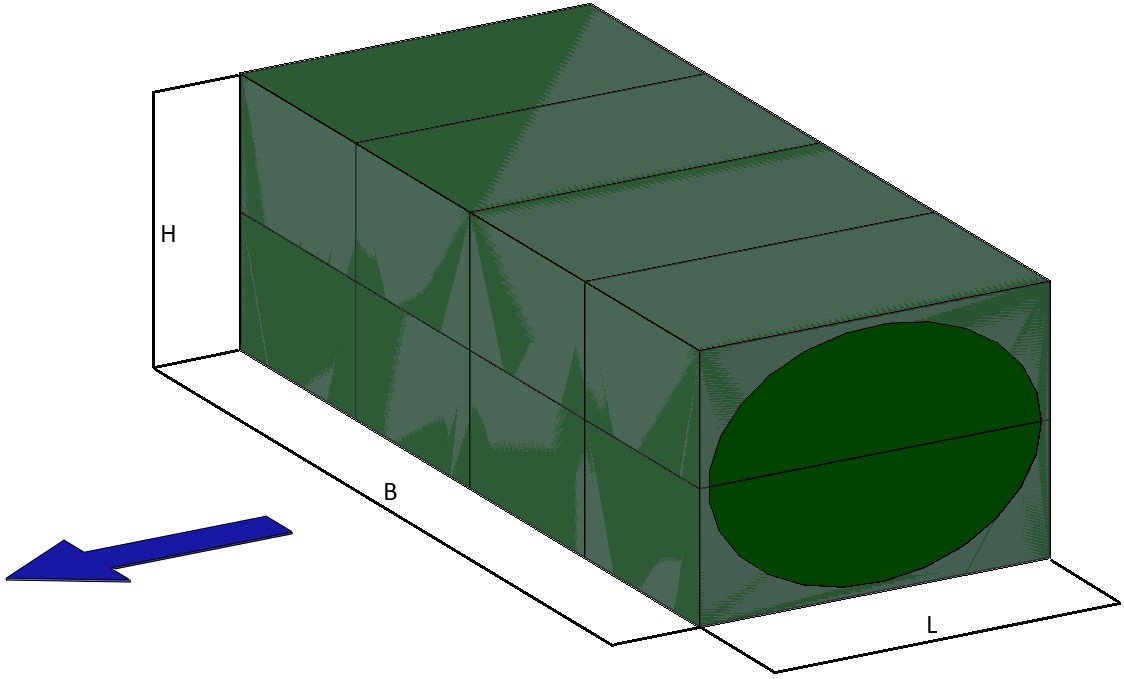

| Product | Product dimensions (lxwxh) in mm | Formation | Container dimensions (LxWxH) in mm | Power (max.) |
|---|---|---|---|---|
| A | ca. 140 x 101 x 50 mm | 1 x 4 x 2 | ca. 140 x 404 x 100 mm | 150 boxes/min. |
| C new | ca. 185 x 101 x 50 mm | 1 x 5 x 2* | ca. 185 x 505 x 100 mm | 200 boxes/min. |
| D | ca. 195 x 101 x 50 mm | 1 x 4 x 2 | ca. 195 x 440 x 120 mm | 100 boxes/min. |
